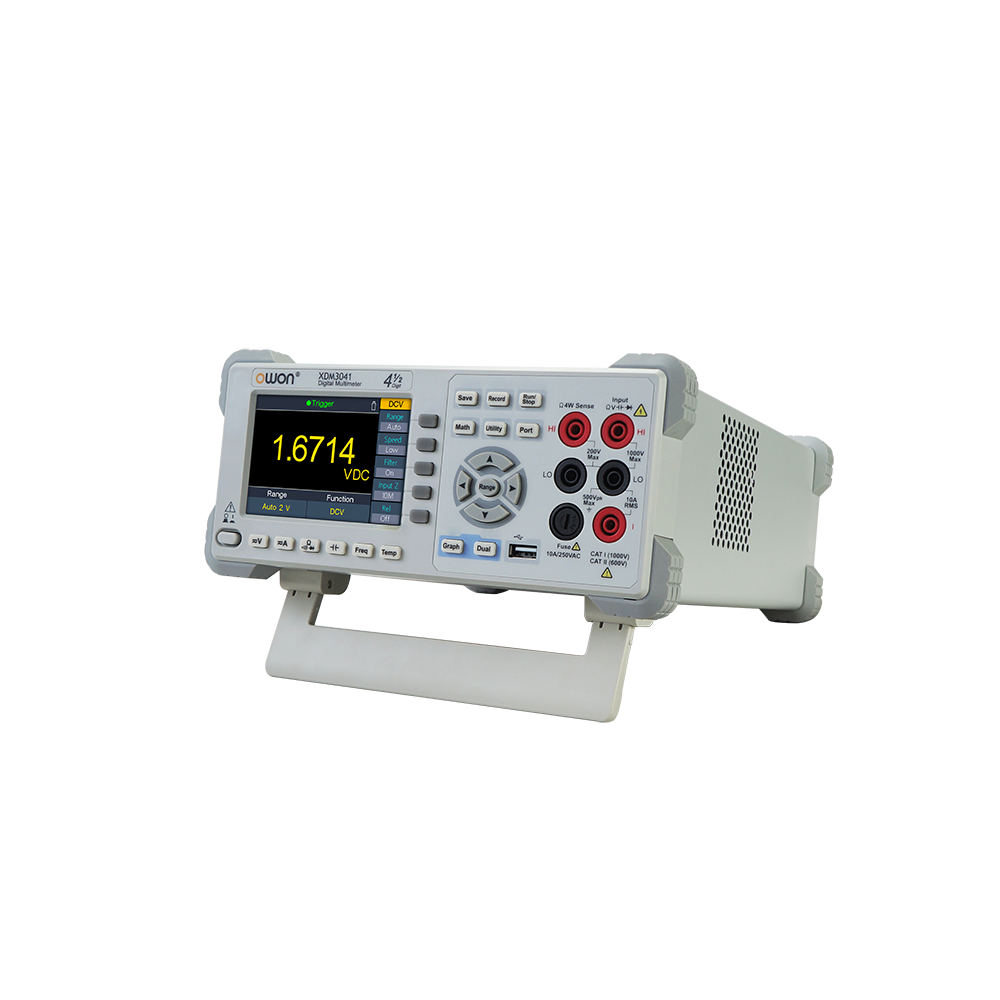

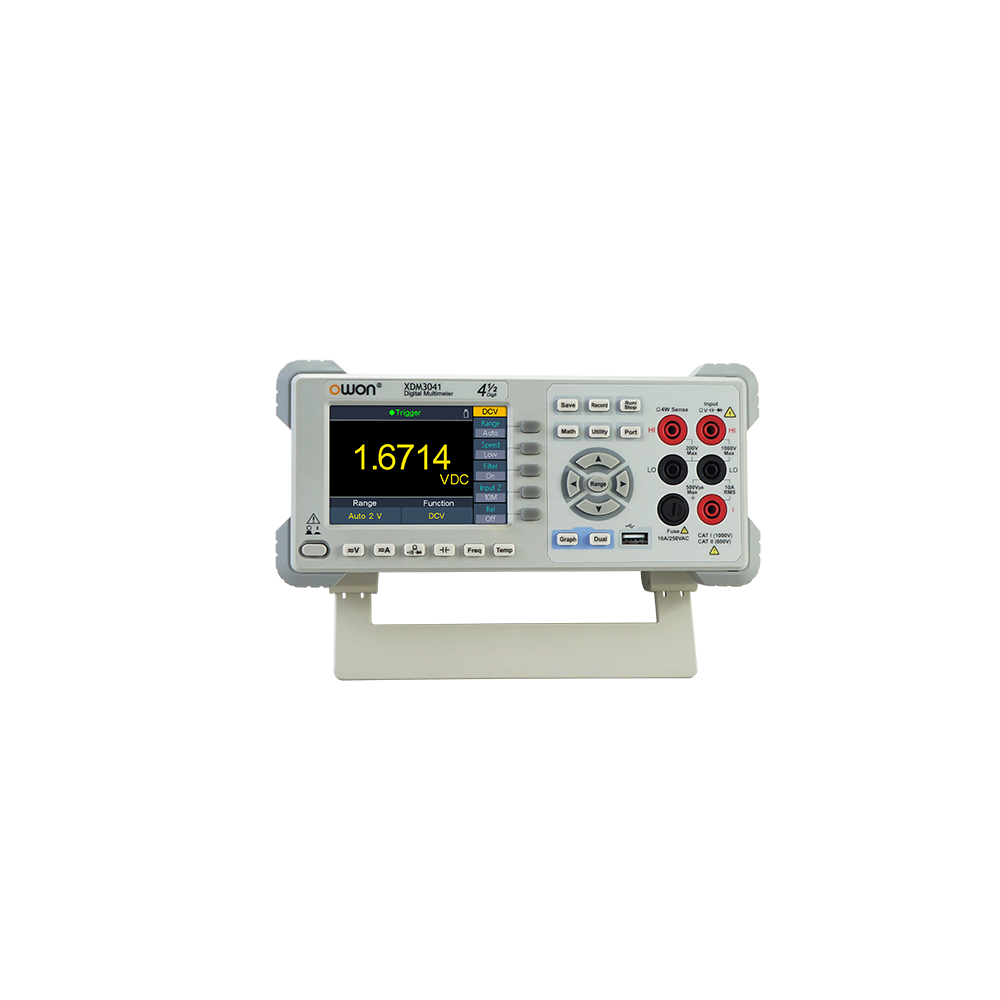

OWON 4 1/2 Bench-type XDM3041 Digital Multimeter

+ 4 inch 480 x 320 pixels high resolution LCD
+ resolutions up to 4 1/2 digits
+ reading rates up to 150 readings/s
+ true RMS AC voltage / current measurement
+ dual line display supported
+ the change trend analysis accessible via special chart mode
+ SCPI supported - remote control, and data-sharing
possible via LAN, USB, RS232 port, and WiFi*
* WiFi module is optional

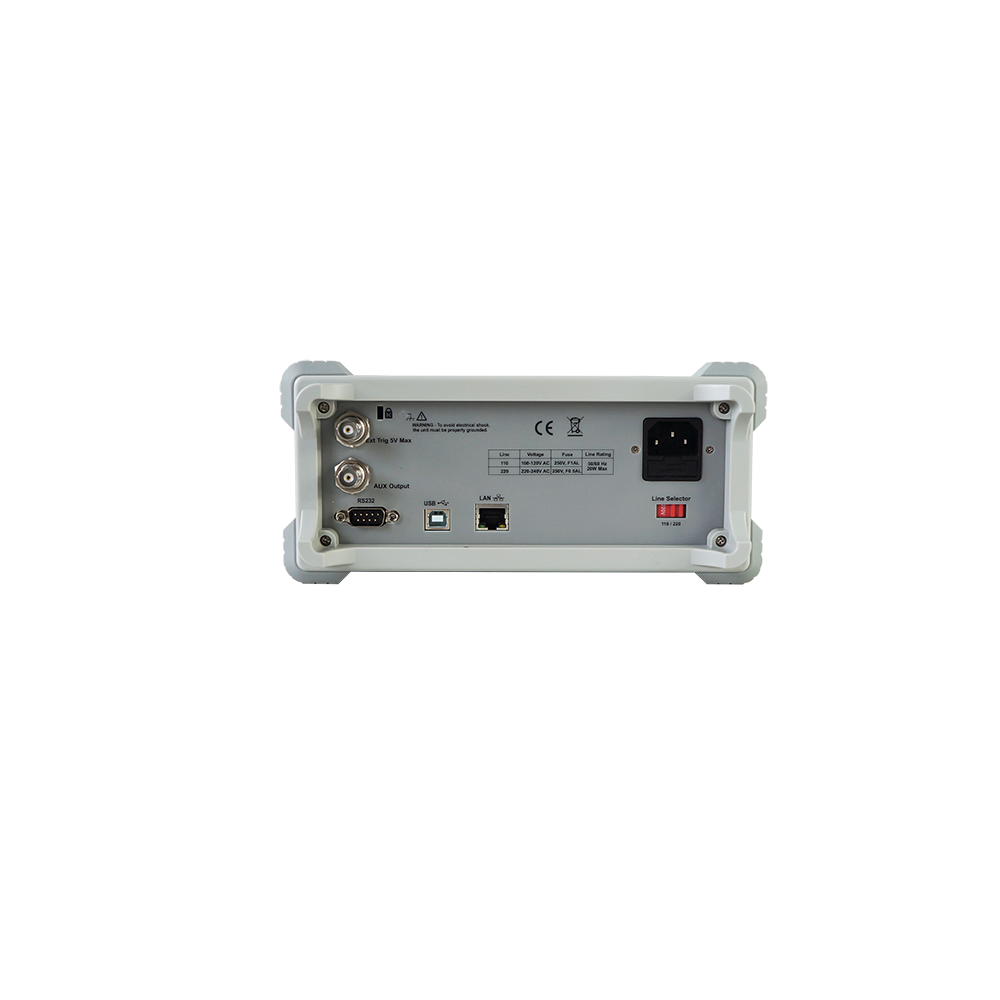

+ multi- IO interface: USB Device / Host, RS232, LAN, and ext.
trigger input

Send Inquiry

Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 4 1/2 bench-type digital multimeter, usb multimeter, wifi multimeter, wireless multimeter, wifi meter app, 412 digit multimeter with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

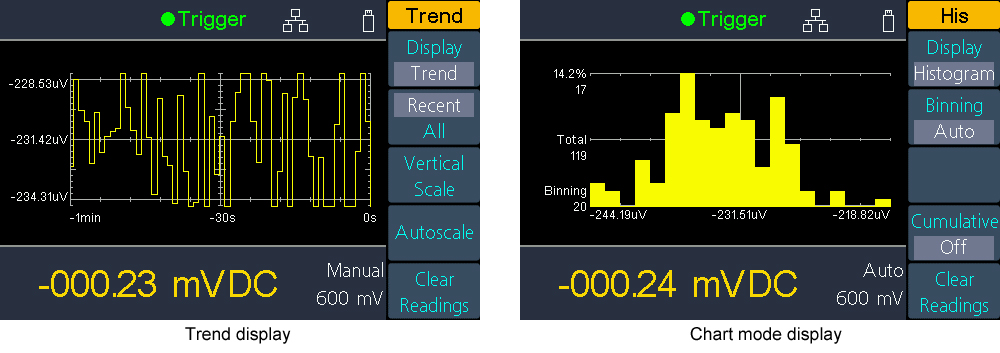

1. 4 inches LCD display, more vision to check the data, support dual display. Trends and chart mode display.

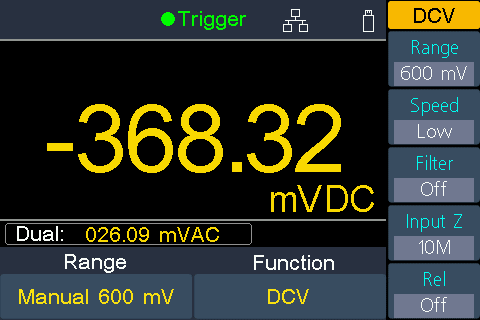

2. Dual display

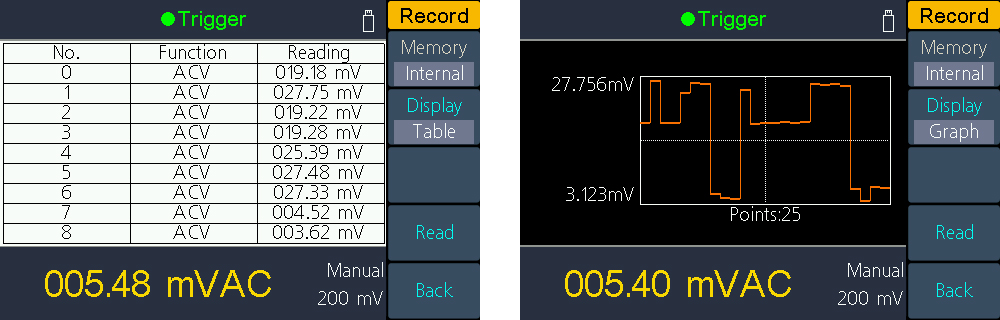

3. Data-logger Mode

During recording the measurement value, possible to set the logging duration (min. 5ms), and length,then get access to chart or table result.

Video

XDM Record Function Introduction

Specifications

XDM3041	Measurement Range	Frequency Range	Accuracy: 1 Year ±(% of reading +% of range)
DC Voltage	600mV, 6V, 60V, 600V, 1000V	/	0.02±0.01
True RMS AC Voltage	600mV, 6V, 60V, 600V, 750V	20 Hz - 50 Hz	2 + 0.10
		50 Hz - 10 kHz	0.2 + 0.06
		10 kHz - 50 kHz	1.0 + 0.05
		50 kHz - 100 kHz	3.0 + 0.08
DC Current	600.00 μA	/	0.06 + 0.02
	6.0000 mA		0.06 + 0.02
	60.000 mA		0.1 + 0.05
	600.00 mA		0.2 + 0.02
	6.000 A		0.2 + 0.05
	10.0000 A		0.250 + 0.05
True RMS AC Current	60.000 mA, 600.00 mA, 6.0000 A, 10.000 A	20 Hz - 45 Hz	2 + 0.10
		45 Hz - 2 kHz	0.50 + 0.10
		2 kHz - 10 kHz	2.50 + 0.20
Resistance	600.00 Ω	/	0.040 + 0.01
	6.0000 kΩ		0.030 + 0.01
	60.000 kΩ		0.030 + 0.01
	600.00 kΩ		0.040 + 0.01
	6.0000 MΩ		0.120 + 0.03
	60.000 MΩ		0.90 + 0.03
	100.00 MΩ		1.75 + 0.03
Diode Test	3.0000 V	/	0.5 + 0.01
Continuity	1000 Ω	/	0.5 + 0.01
Frequency Period	600 mV - 750 V	20 Hz - 2 kHz	0.01 + 0.003
		2 kHz - 20 kHz	0.01 + 0.003
		20 kHz - 200 kHz	0.01 + 0.003
		200 kHz - 1 MHz	0.01 + 0.006
	60 mA - 10 A	20 Hz - 2 kHz	0.01 + 0.003
	60 mA - 10 A	2 kHz - 10 kHz	0.01 + 0.003
		Test Current
Capacitance	2.000 nF	200 nA	3 + 1.0
	20.00 nF	200 nA	1 + 0.5
	200.0 nF	2 μA	1 + 0.5
	2.000 μF	10 μA	1 + 0.5
	200 μF	100 μA	1 + 0.5
	10000 μF	1 mA	2 + 0.5
Temperature	temperature sensors under 2 categories supported - thermocouple (ITS-90 conversion between B / E / J / K / N / R / S / T type), and thermal resistance (RTD sensor conversion between Pt100 and Pt385 type)
Data-logger Function
Logging Duration	5ms
Logging Length	1M points
